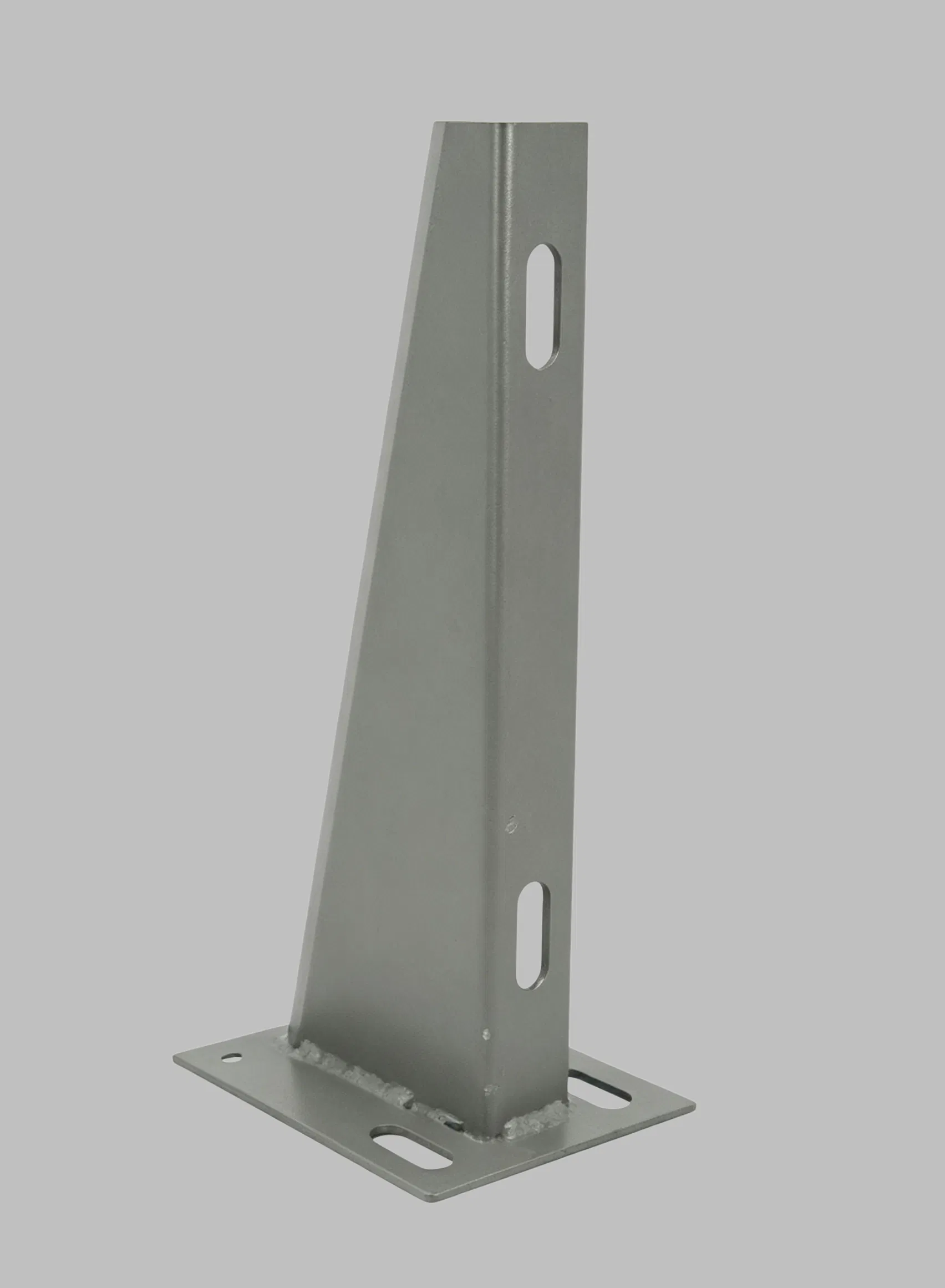

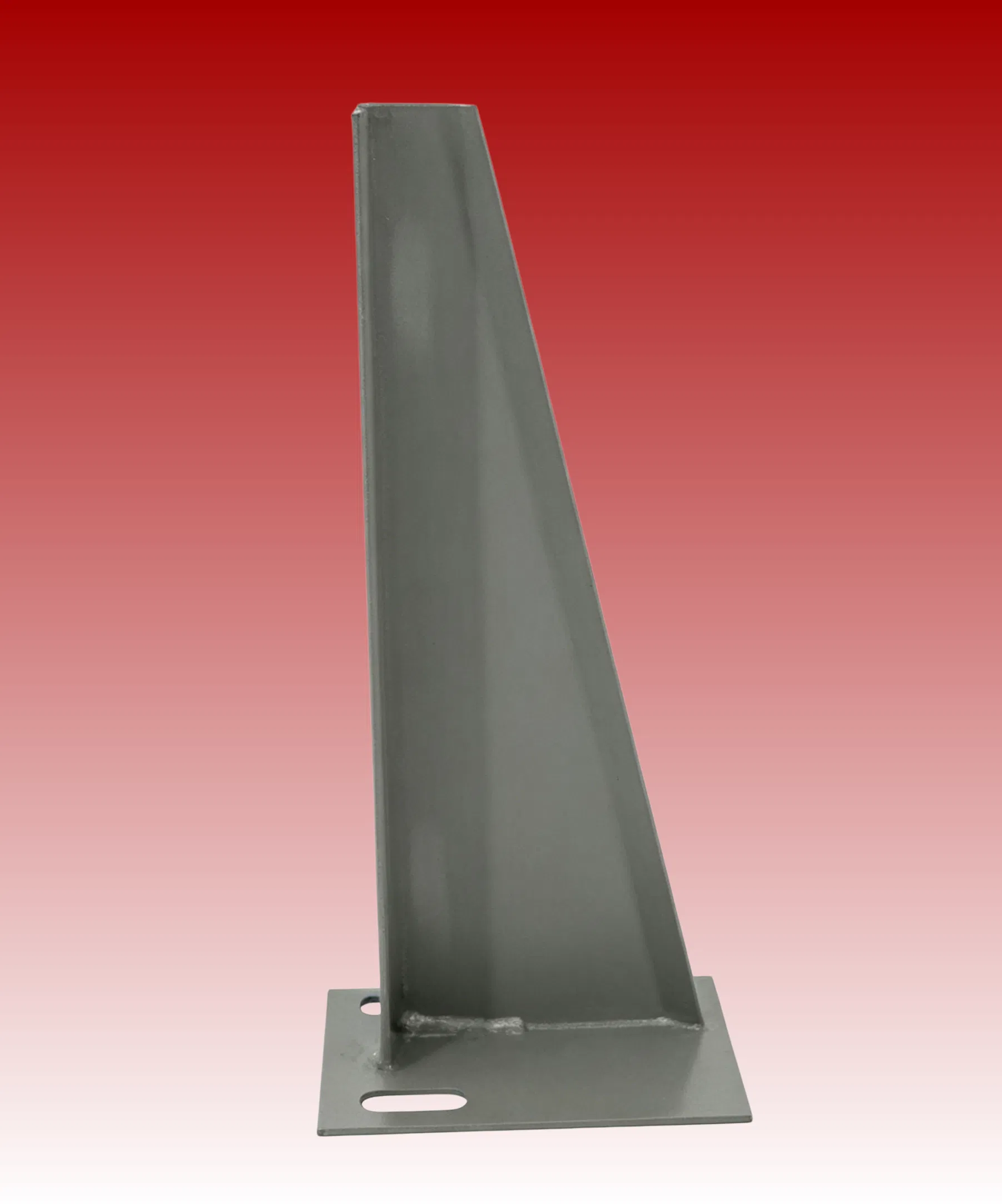

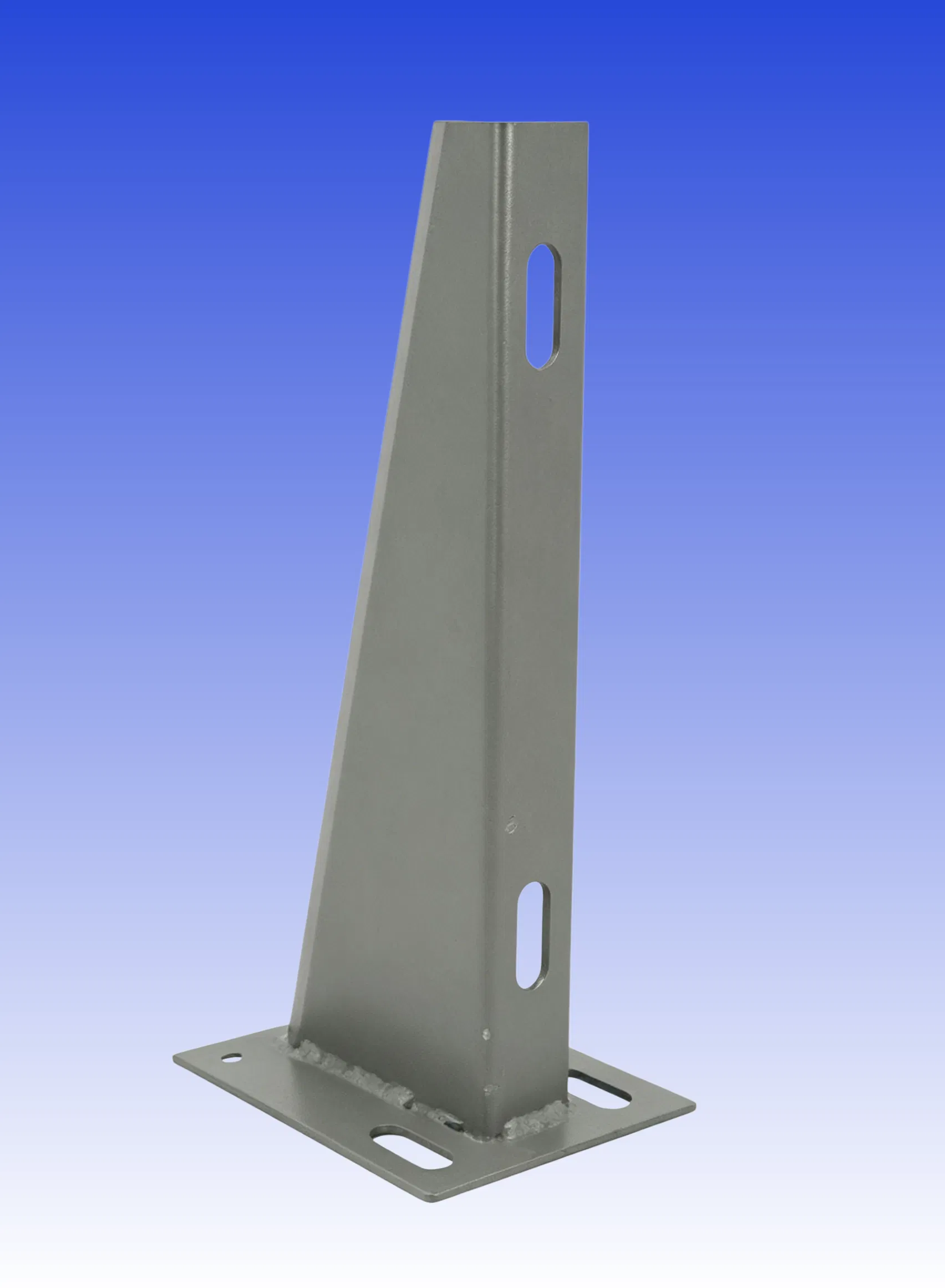

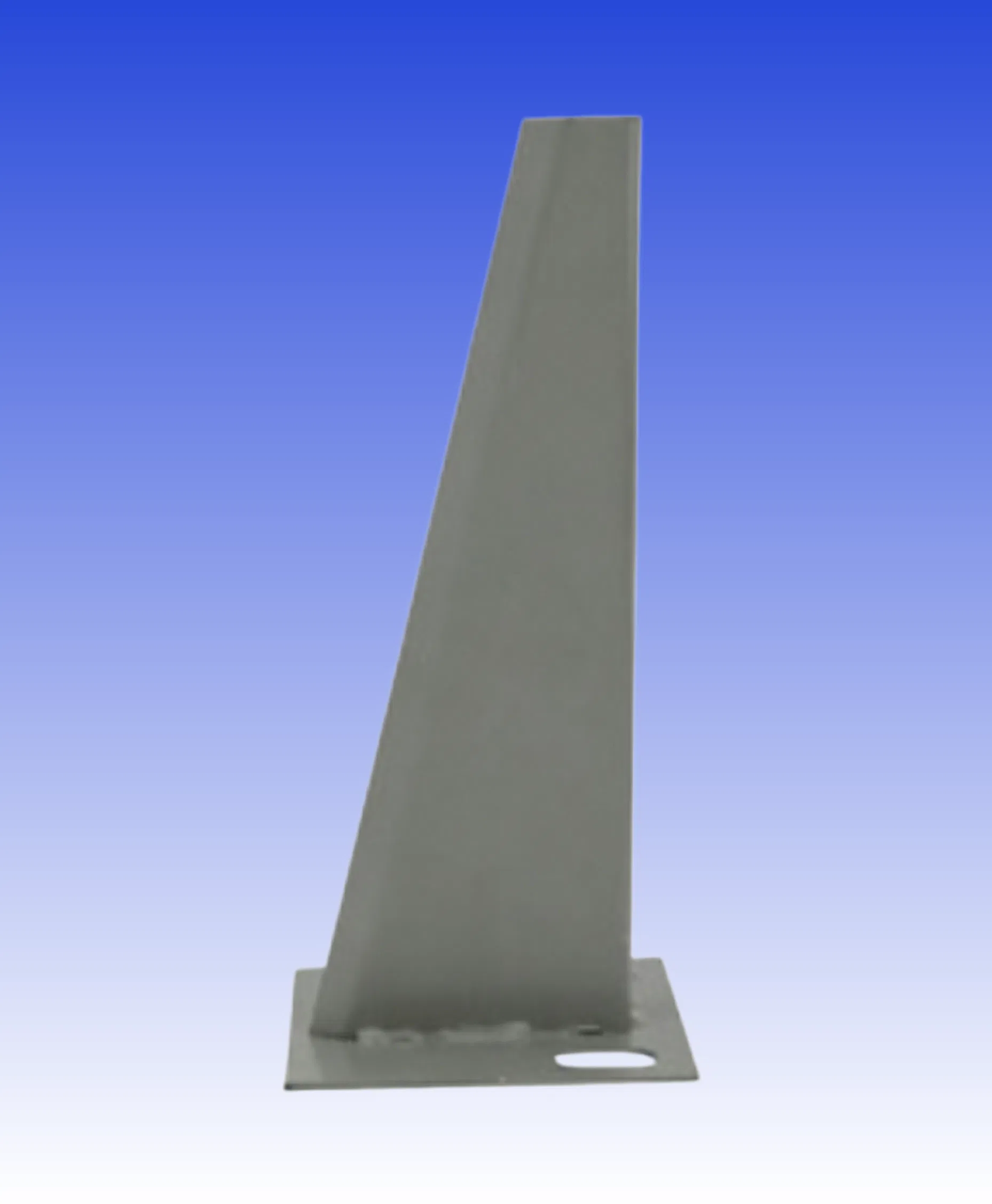

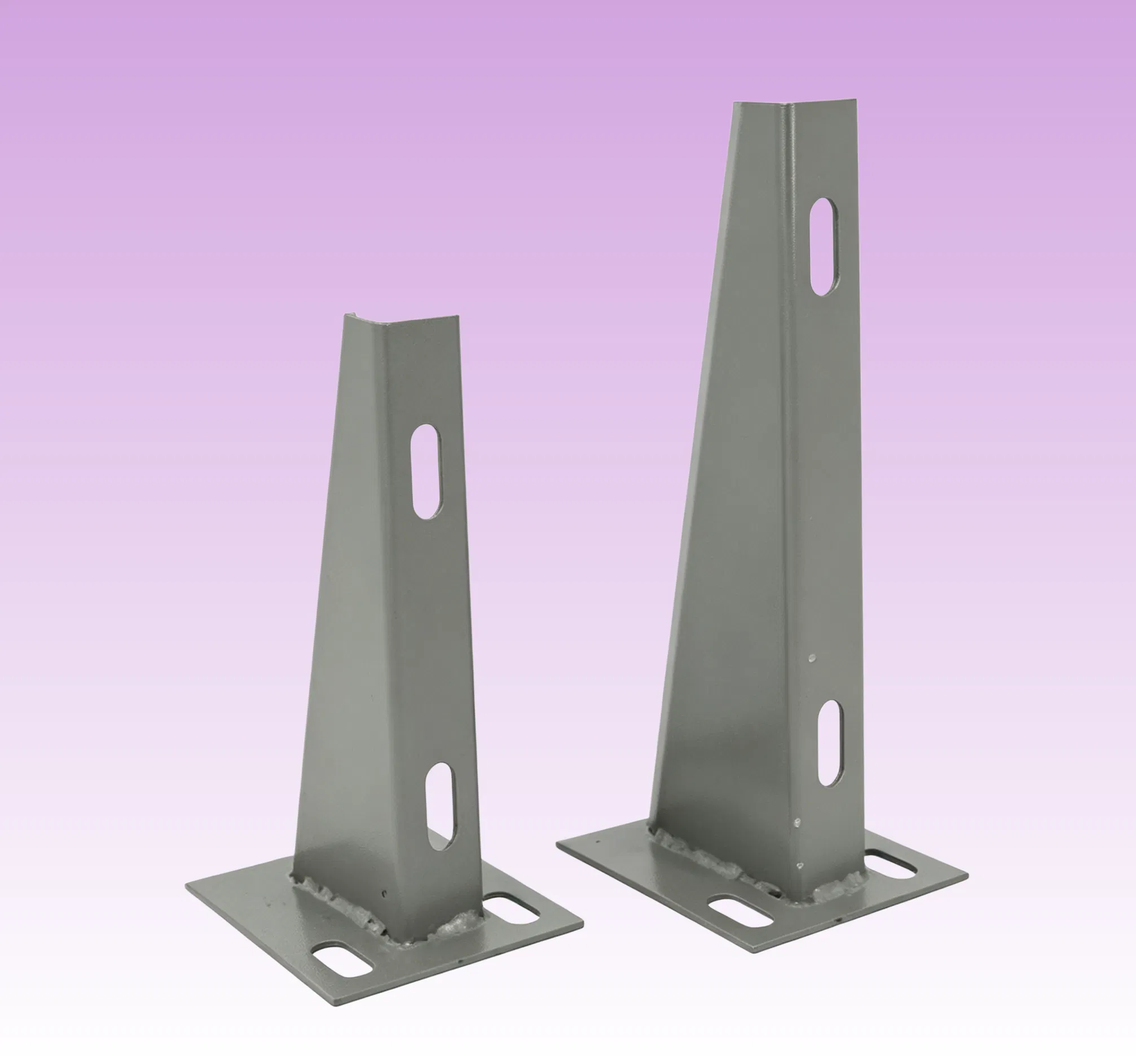

The XQJ-bracket-03, also known as Type 03 Bracket/Cantilever Support, is vital for cable tray systems. It excels in vertical wall-mounting, overhead support, and fixed cable tray installation, ensuring stability and safety through robust vertical support.
| Parameter Item | Standard Configuration | Customizable Range |
|---|---|---|
| Model | XQJ-bracket-03 (Standard) | Custom model per drawings |
| Material | Q235B Cold-Rolled Steel | Galvanized steel, Aluminum alloy, 304/316 Stainless Steel |
| Plate Thickness | 2.0mm - 4.0mm | 1.5mm - 5.0mm (optional for load demand) |
| Standard Length | 100mm / 150mm / 200mm / 300mm | Custom length (50mm - 1000mm+) |
| Surface Treatment | Hot-dip Galvanizing | Pre-galvanizing, Powder Coating, Electro-galvanizing |
| Load Capacity | Light/Medium/Heavy Duty | Customized load grade (10kg - 100kg+) |
| Connection Type | Bolted / Welded | Bolted (standard), Welded (optional) |
| Matching Tray | XQJ Series Trough/Tray/Ladder | Compatible with all standard cable trays |
| Material Type | Suitable Scenario | Advantages |
|---|---|---|
| Cold-rolled Steel (Hot-dip Galvanized) | General industrial and construction projects | High strength, low cost, strong corrosion resistance |
| Stainless Steel (304/316) | Seaside, chemical, high humidity environments | Excellent corrosion resistance, long service life |
| Powder Coated Steel | Indoor decoration, high appearance requirements | Rich color options, beautiful surface, anti-corrosion |
| Pre-galvanized Steel | Indoor dry environment, low-load projects | Cost-effective, good rust resistance |

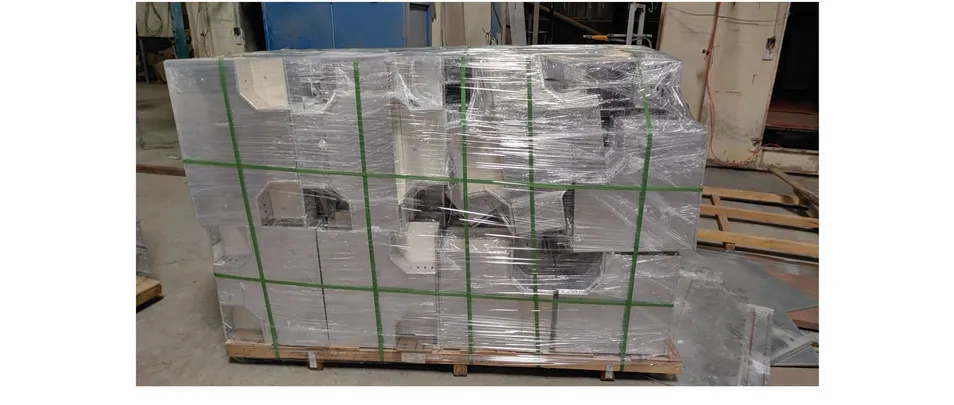

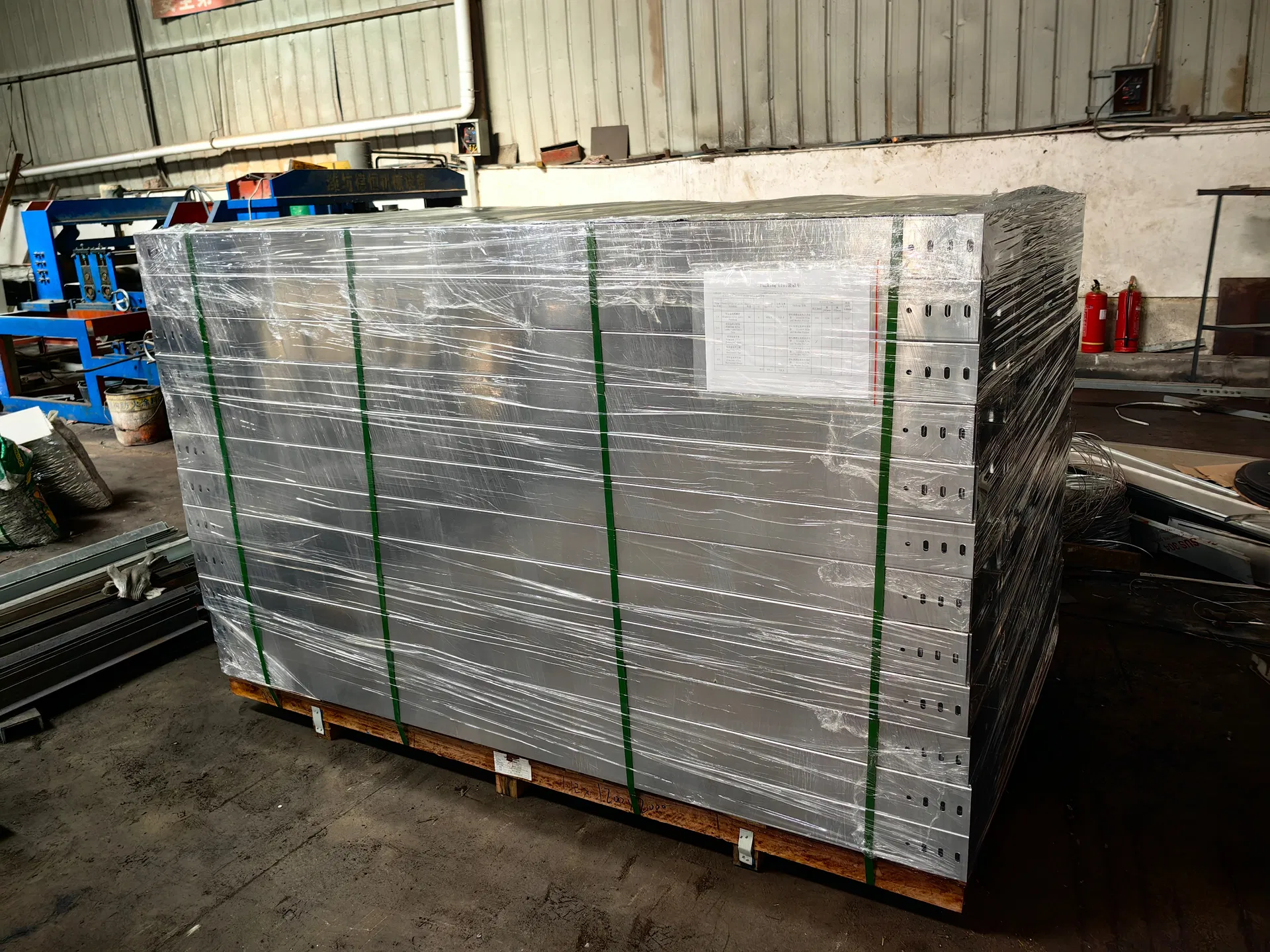

Standard export packaging. Waterproof and anti-collision protection. Fully customizable to client needs.

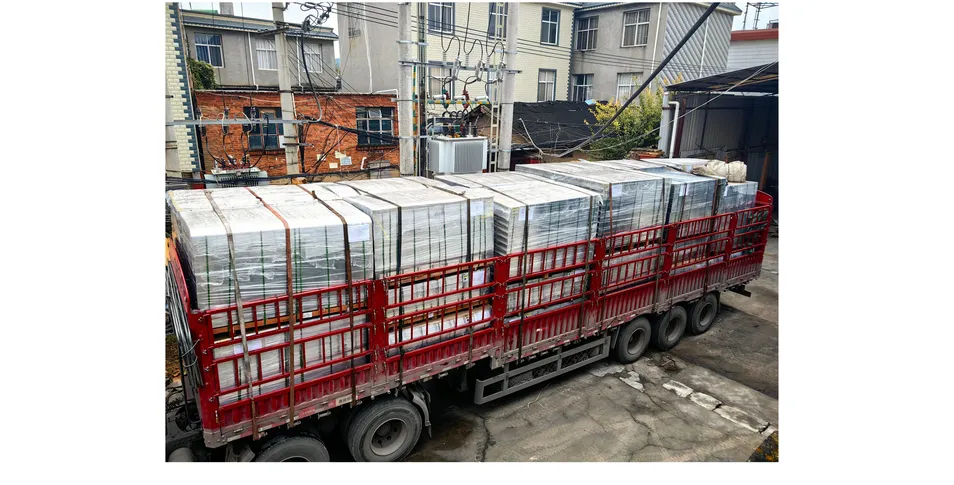

Supports sea, air, and express delivery. Custom shipping marks and labels can be attached as needed.

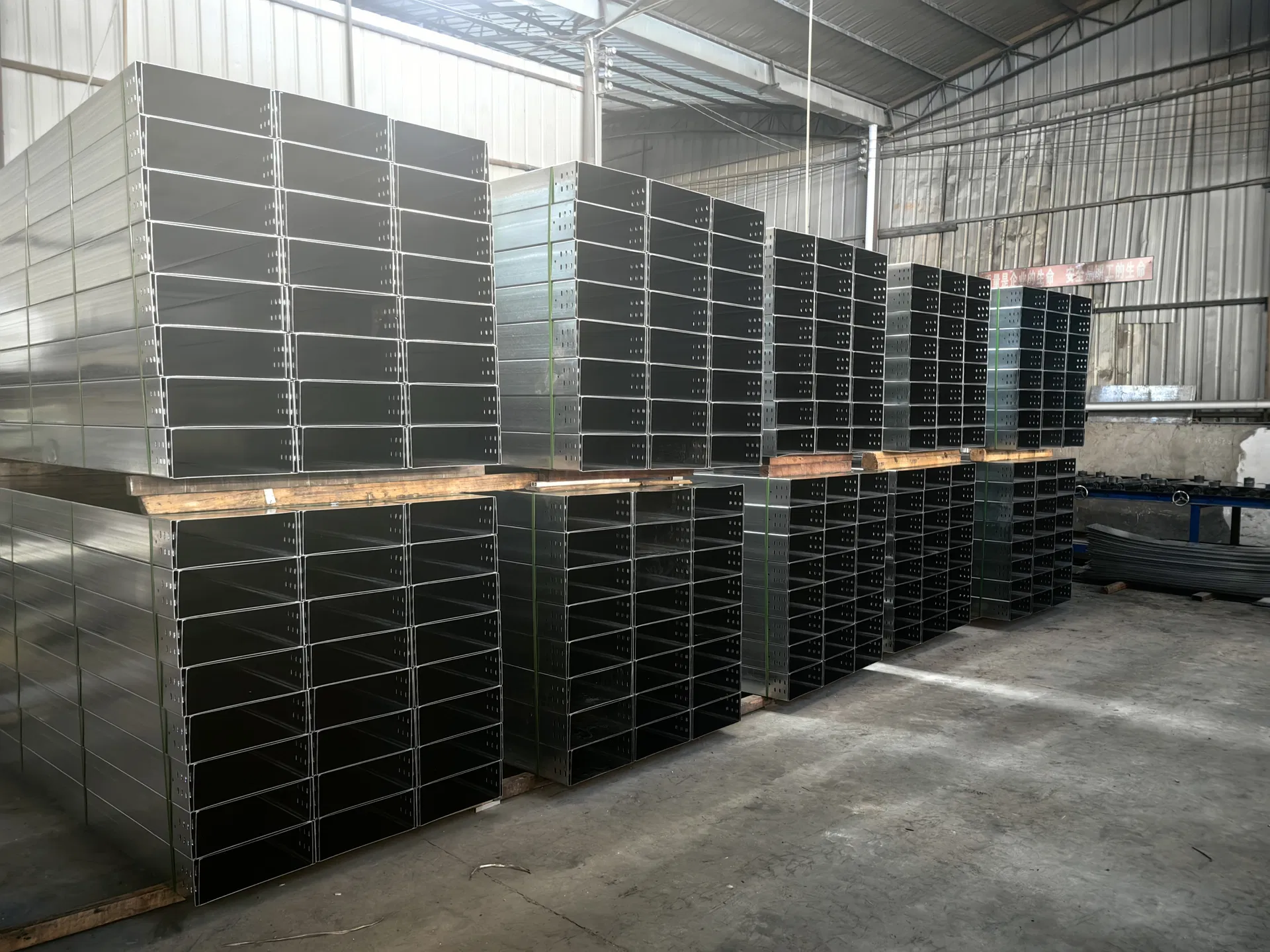

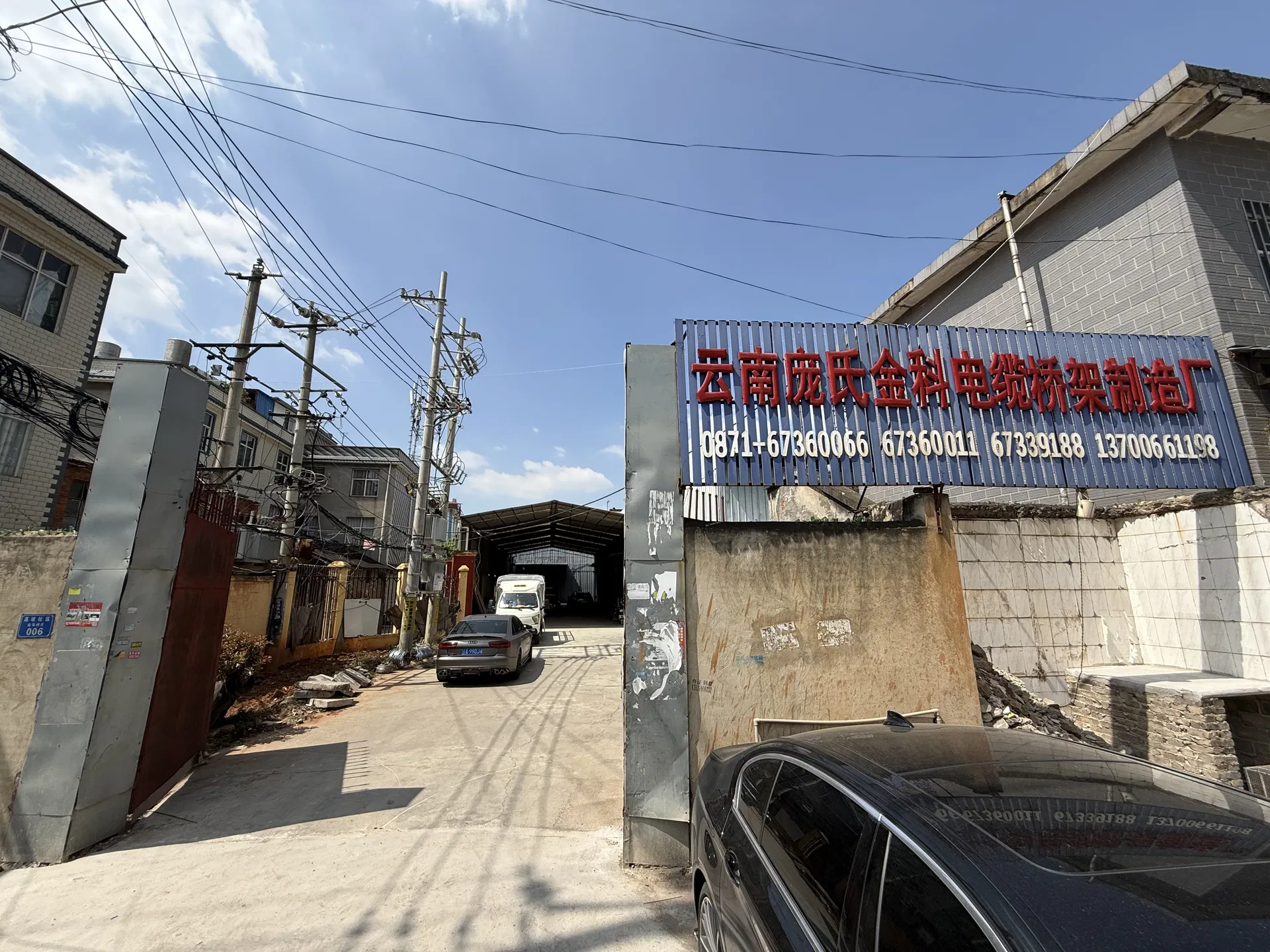

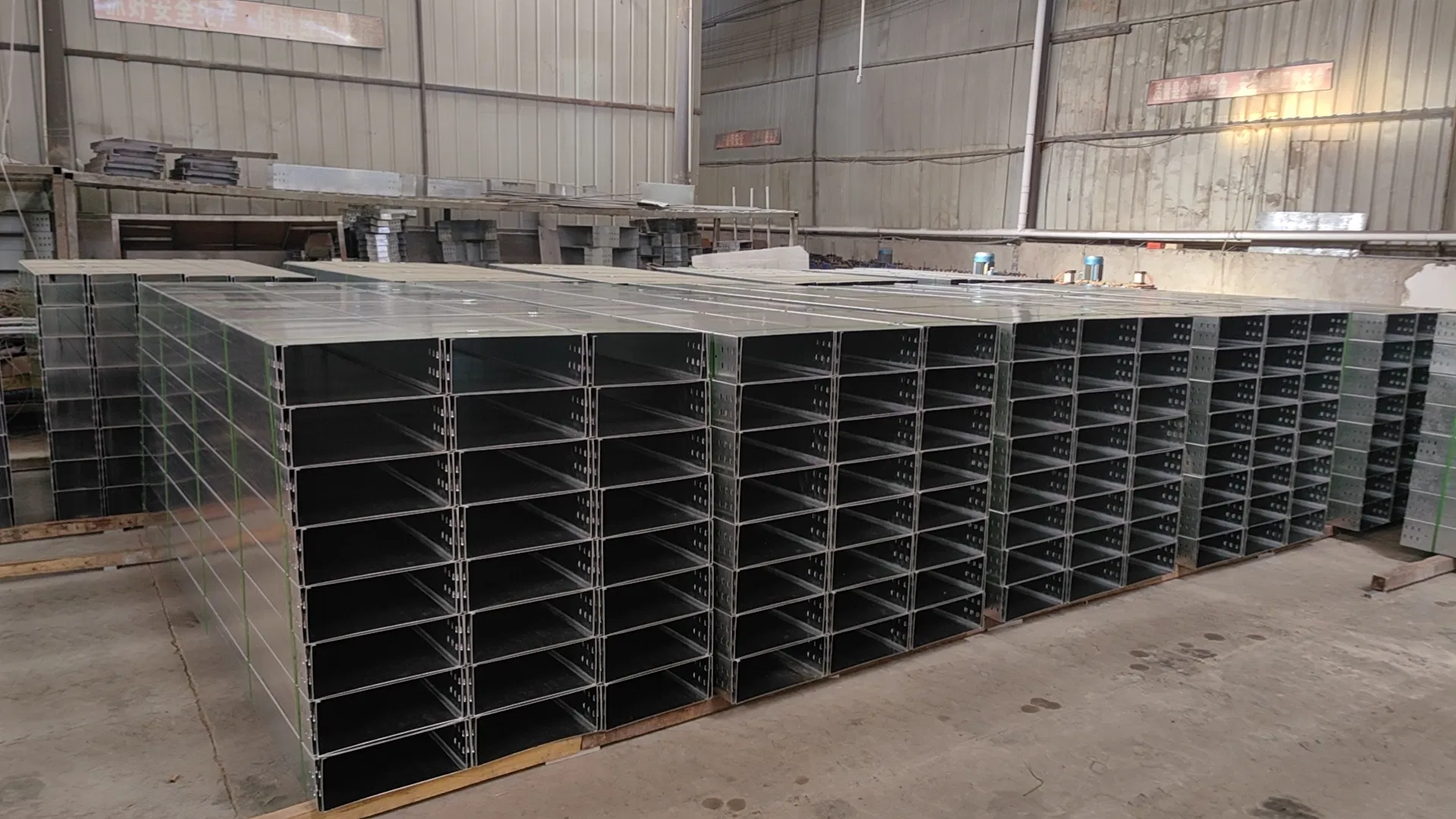

We specialize in cable tray systems with comprehensive R&D, production, sales, and service. Our manufacturing facility boasts over 8,000 sqm of production space equipped with advanced stamping and galvanizing lines.
With ISO9001 certification, our expert team provides professional cable tray solutions, including custom design, consultation, and installation guidance. Embracing 'Quality First, Customer Supreme', our products are exported globally, earning high recognition for stable quality and competitive pricing.
Q1: What is the load-bearing capacity of the XQJ-bracket-03?
A: Capacity depends on steel plate thickness and length. Standard specifications hold 20kg-50kg; heavy-duty (100kg+) custom brackets are also available.
Q2: Is this bracket compatible with other brands of cable trays?
A: Yes, our brackets feature standard holes and sizes, making them compatible with XQJ series and most mainstream brands. We can also provide custom sizes for special projects.
Q3: What is the minimum order quantity (MOQ)?
A: Standard MOQ is 10 pieces. For custom products, the MOQ is negotiable based on the design complexity.
Q4: What payment terms do you accept?
A: We accept T/T (30% deposit, 70% balance before shipment), L/C at sight, Western Union, and MoneyGram.
Q5: Can you provide export documents?
A: Yes. We provide a full set of export documents including Commercial Invoice, Packing List, Bill of Lading, Certificate of Origin, and CE/UL certification documents to facilitate smooth customs clearance.
Q6: What surface treatments can be customized for harsh environments?
A: For corrosive environments, we offer Hot-dip Galvanizing (HDG) with coating thickness ≥85μm, as well as 304 or 316 Stainless Steel options for long-term corrosion prevention.
